Specification of w-009



IoT

Module with POCSAG encode

W-009 ISM Band

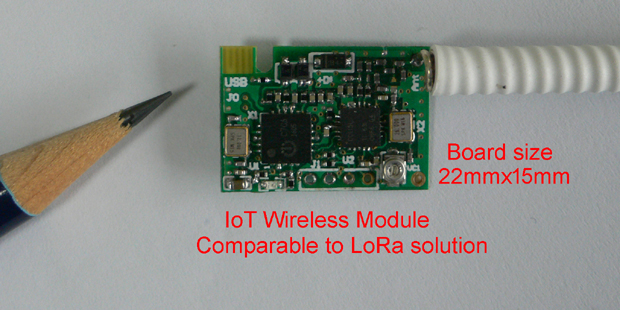

IoT wireless New solution Comparable to LoRa system

Compact Data Transmitter Module for

Wireless alarm and security system,

Industrial monitoring and control system

Long Long Long range and Long long long battery lift...

Programmable Frequency from 315-, 433-, 868-, 915-, 920-, 950-MHz,
ISM/SRD Band

Supported Modulation Formats:

2-FSK,2-GFSK, 4-FSK, 4-GFSK, MSK, OOK

RF output up to 10mW

POCSAG Encoder inside

Tiny size 22mmx15mm H 3.0mm








       IoT wireless Module  W-009 Datasheet

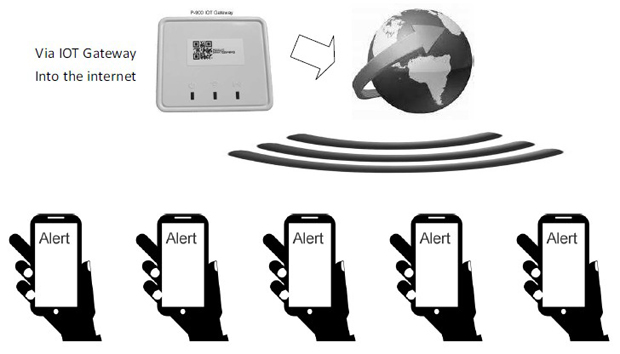

      Also see IoT Gateway P-900 Datasheet

    For IoT Wireless Application













The new design w-009 is a cost effective and high performance sub-1 GHz RF transmitter,

Which is integrated with a high configurable baseband modulator.

The device support various FSK modulation formats and has a configurable data rates from 0.5 to 2.4K bps.

Inside of POCSAG Copcode with message

The new w-009, which is the high reliability and low cost, high power output transmitter in ISM band, is an ideal design module used for IoT wireless data applications etc.







  Main Function

  • ISM Band 315/433/868/915MHz
  • Narrow band FM or FSK Modulation
  • 2-level FSK,4-level,GFSK, OOK supported
  • POCSAG 512/1200/2400 Encoder inside (option)
  • High RF output up to 10mW
  • Data rate up to 2.4 Kbps.
  • PLL synthesized frequency controller
  • Operation temperature from -30 -- +70
  • Tiny Size: 22mm x15mm x3mm
