Specification of TXF-1500

　

FM/FSK

Transmitter Module

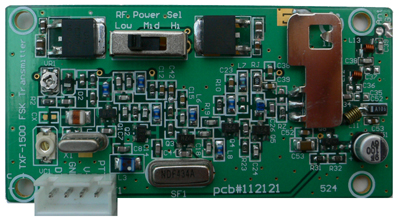

 TXF-1500

UHF band Transmitter  420MHZ~470MHz 0.5/1.0/1.5Watt Selected

　

　



↑ Option BNC coaxial cable / SMA coaxial cable ↓

   Download Datasheet

For Wireless Application

The TXF-1500, which is the high reliability and low cost FM and FSK transmitter in UHF band, is an ideal design module used for Paging system, wireless data messaging, and wireless telemetry applications etc.

　

    Main Function

  • 420~470MHz,868~935MHz
  • FM/FSK Modulation
  • RF Power output can be switchable up to 1.5W
  • POCSAG or any 2 level data formats
  • Data rate up to 6.4Kbps.
  • 6 times crystallized oscillation controller
  • Operation temperature from -20℃ -- +70℃
  • Small Size: 68mm X 25mm X 12mm
  • Option BNC Jack with coaxial cable
  • Option SMA Jack with coaxial cable
