Wireless POCSAG Transmitter

M-840L Pendant and Watch TX

                           Just Press the Red button direct calling to pagers.

@

@

Main Function

  • Water resistance

  • Compact portable size

  • Quick paging

  • Direct calling to pagers

  • Simple operation

  • Internal antenna

  • Necklace hanger

  • Wristwatch

  • Low battery warning  indication and sending

  • Long distance

  • Long battery life

  • Frequency synthesized

  • CE and FCC approved

Application

  • Hospitals
  • Nurse station
  • Rest-home
  • Restaurants
  • Club
  • Casino
  • Hotels
  • Emergency situations
  • Manufacturing
  • Convention center

@

@

@

@

@

@

@

@

@

@

@

@







@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

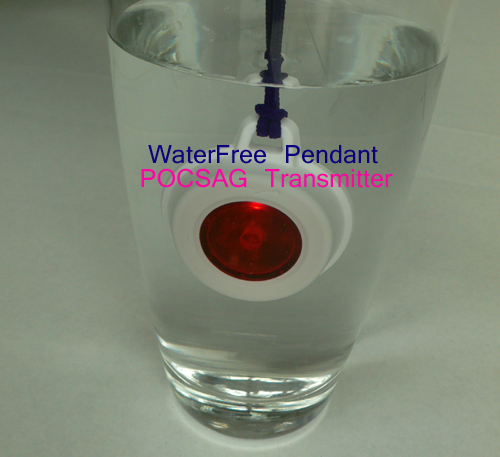

The M-840L Wristwatch and Pendant transmitter is designed to directly page the nurses or health care

persons with a simple Red button depressing.

No need to dial telephone to get the helps.

And the installation is simple without any wires connections.

The operation is easy for the quick emergency aids.

Calling Nurse for helps ? simply just press the Red  button.



                                                        Specifications

@

Mode No.  M-840L
Paging format:  POCSAG
Frequency:: 410-490MHz,868-915MHz Frequency by Programmable
Baud rate: 512bps / 1200bps / 2400bps.
Message: Numeric and Alphanumeric (Max 40 Character).
Message data: Numeric or Alphanumeric.
RF output 1-12 mW. Programmable
Modulation: FSK ,NRZ.
Deviation: 4.5Khz.
Stability: 10 ppm.
Pager Capacity: 1 Button and 1 Battery Low alarm auto calling by wireless
Battery: 1x CR2450 Lithium battery.
Battery life about 2 year. ( 10 Time per day).
Programming I/O: via Micro USB with P/C.
Size: 39mm X 17mm.
Housing Color:
White or black color
Model Weight:

24gs (with battery).

                                                                             Notes:  Specifications are subject to change without notice
