Wireless Paging Transmitter

M-820L Pendant TX

                           Just Press the Bell button direct calling to pagers.

@

@

Main Function

  • Compact portable size

  • Quick paging

  • Direct calling to pagers

  • Simple operation

  • Internal antenna

  • Necklace hanger (with safety joint cotton rope)

  • Low battery warning  indication

  • Long distance

  • Include wall holder

  • Frequency synthesized

Application

  • Hospitals
  • Nurse station
  • Rest-home
  • Restaurants
  • Club
  • Casino
  • Hotels
  • Emergency situations
  • Manufacturing
  • Convention center

@

@

@

@

@

@

@

@

@

@

@

@

@







@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

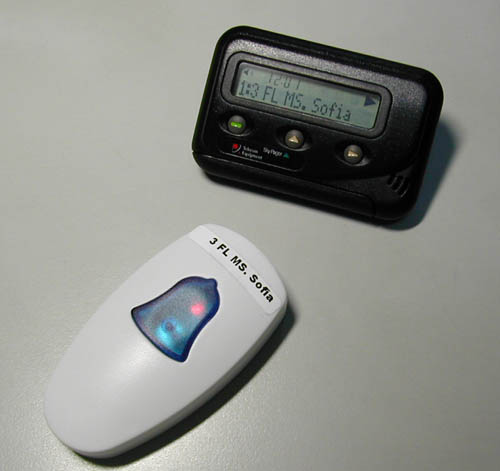

The M-820L Portable transmitter is designed to directly page the nurses or health care persons with a

simple Bell button depressing. No need to dial telephone to get the helps.

And the installation is simple without any wires connections.

The operation is easy for the quick emergency aids.

Calling Nurse for helps ? simply just press the Bell  button.



                                                        Specifications

@

Mode No.  M-820L
Paging format:  POCSAG
Frequency:: 303-490MHz,868-915MHz Frequency by Programmable
Baud rate: 512bps / 1200bps / 2400bps.
Message: Numeric and Alphanumeric (Max 40 Character).
Message data: Numeric or Alphanumeric.
RF output 1-12 mW. Programmable
Modulation: FSK ,NRZ.
Deviation: 4.5Khz.
Stability: 10 ppm.
Pager Capacity: 1 Button and 1 Battery Low alarm calling by wireless
Battery: Type 23A Alkaline battery.
Battery life about 1 year. ( 10 Time per day).

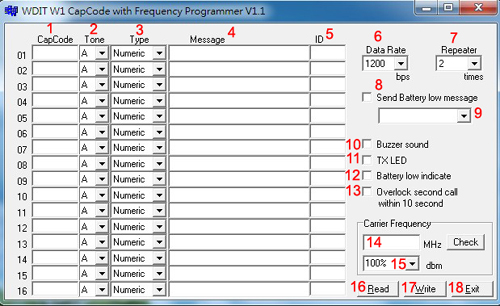

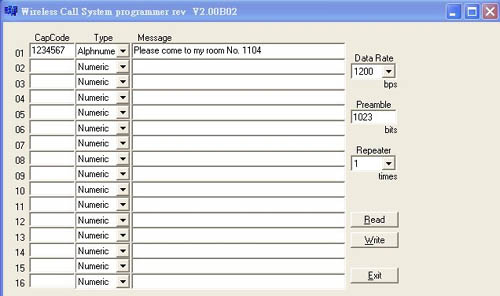

Programming I/O: via USB with P/C.
Size: 80mm X 42mm X 18mm.
Housing Color:
White color
Model Weight:

32gs (with battery).

                                                                             Notes:  Specifications are subject to change without notice
