Wireless Call System

 M-810L Service call

                       Calling for service Just Press the Bell button

Main Function

  • Fast Response

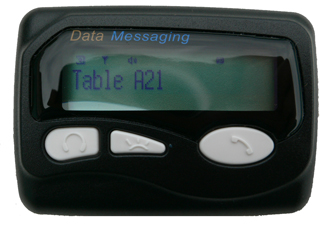

  • Direct to pagers
  • Easy installation
  • Easy operation
  • No wires
  • No power cord
  • Antenna inside
  • Place on the table
  • Steal alarm for option
  • Hanging on the wall
  • Long distance
  • Frequency Synthesized
  • Same day delivery

     Programming by





¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

The M-810L service call system is designed to directly page waiters with a Bell button depressing.

There are no wire connections necessary. And the installation is easy and simple for the operations.

Calling waiters or Nurse for helps? Simply press the Bell button right of away. Also, the M-810L has

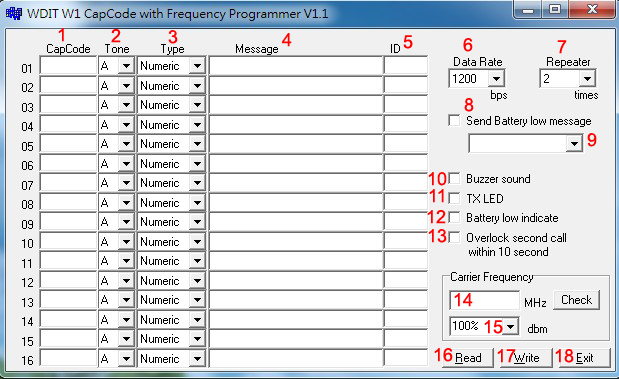

various of the paging features which can be set easily by the PC programming.

¡@

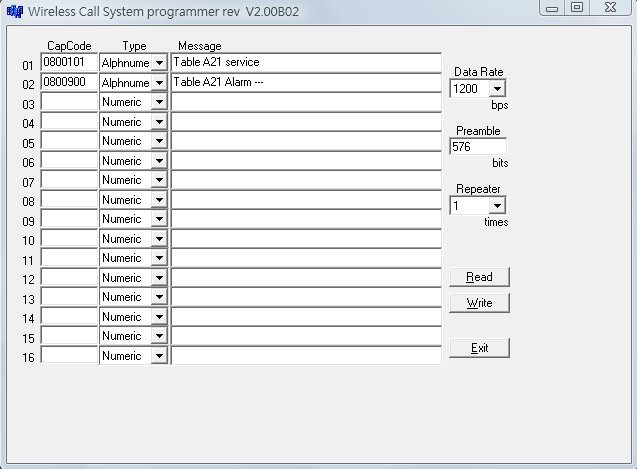

It is easy to program and set up the desired pager frequency, capcode, data rate, repeat time etc functions.

¡@



¡@

¡@

¡@

¡@

                                                      Specifications of M-810L

Paging format:  POCSAG
Baud rate: 512bps / 1200bps / 2400bps.
Message: Numeric and Alphanumeric (Max 40 Characters).
Frequency: 303-490MHz,868-915MHz by Frequency Synthesized (PLL)
RF output 1-12mW mW Programable.
Modulation: FSK ,NRZ.
Deviation: 4.5Khz.
Stability: ¡Ó10 ppm.

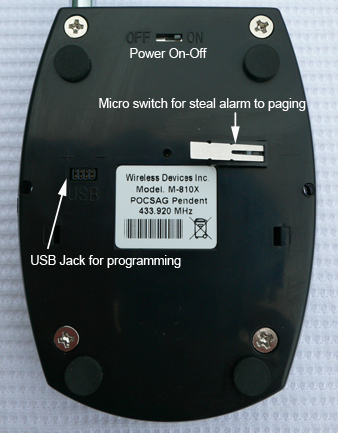

Pager Capacity: 1 Button for service call and 1 micro switch for steal alarm paging (option 01).
Operating Voltage: 3 V (AAA x2) Alkaline battery.
Programming: via USB with P/C.
Battery life about 1 year ( 10 Times per day).
Size: 99mm X 71mm X 25mm.
Housing Color:
Black (other desired colors in minimum 500PCs per order).
Model Weight:

80gs (with batterys).
                                                                             Notes:  Specifications are subject to change without notice
