Specification of PDR-Y1736
|
|
Synthesized POCSAG Receiver
|
PDR-Y1736L Frequency Synthesized |
Multi-Function POCSAG Data
Receiver Modules
Meet Any Paging
Network / Private Paging System
Programming by
USB 2.0

TTL Output and 4 Driver
Outputs
¡@

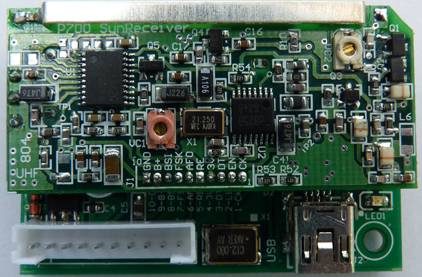

The Y1736L
is specially designed with the compact size and the high performance
synthesized VHF 130-174MHz /UHF
430-470MHz bands paging data receiver module,
which is an ideal product for providing remote control or data
messaging or one way telemetry by
utilizing
either the existed
POCSAG paging infrastructure or on-premises paging equipment. It provides 4 CMOS
driver outputs
and the
message data out by
RS-232 TTL level, new add AF(Audio) and FSK(POCSAG date) output for your
more applications.
¡@
PLL Synthesized Frequency Bands.
for VHF.
Band 1.
130-145MHz
Band 2. 145-160MHz
Band 3. 160-174MHz
¡@
for UHF
Band A. 430-440MHz
Band B. 440-450MHz
Band C. 450-460MHz
Band D. 460-470MHz
¡@

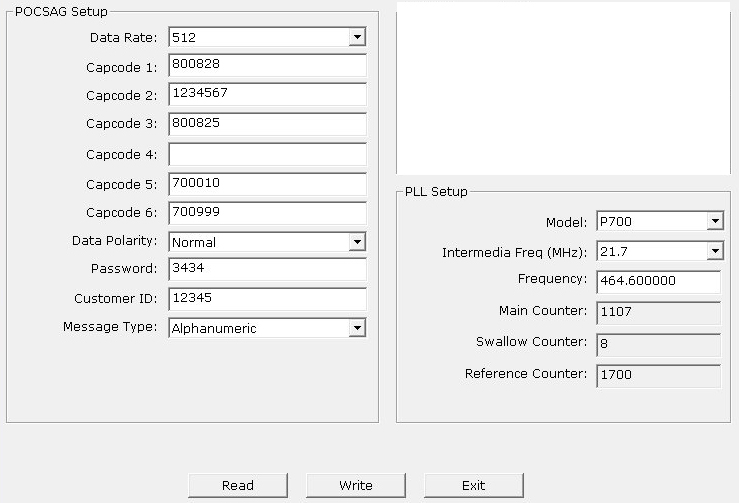

Programming OS
¡@
|
Main Function
-
Wide bands synthesizer frequency
-
POCSAG, baud: 512bps/1200bps/2400bps
-
TTL RS-232 output (9600bps)
-
Built-in 4 CMOS On/Off
ports for relays' driving use
-
AF (Audio) output
-
FSK (POCSAG Data) output
-
Programming by USB
-
Wide DC power in 5V or 6-24V
-
Internal loop antenna
-
Option SMA cable for external antenna
|
Application
-
POCSAG Data Receiver
-
Remote Controller
-
Car Burglar Alarm
-
Telemetry
-
Messaging devices
-
Advertisement Panel
-
wireless clock system
-
LED Message sign
|
General
|
|
Size: |
50mm X
33mm X 13mm
|
|
Power supply: |
5V or
6-24V DC. 50mA maximum current consumption. |
|
Weight |
14gm |
|
Operation Temperature |
-40˚C~85˚C |
|
RF Performance |
|
Frequency bands: |
130~174MHz,430~470MHz,by Frequency synthesized.
868MHz,930MHz by crystals controller only. |
|
Frequency stability: |
+/- 10 ppm standard |
|
Channel spacing |
12.5kHz or 25kHz |
|
Demodulation |
FSK NRZ, POCSAG format 512, 1200 or 2400 Bps |
|
Selectivity |
55dB |
|
Inter modulation rejection |
60dB |
|
Sensitivity by loop antenna |
-106db/M (512bps),-105db/M (1200bps), -103db/M (2400bps) |
|
User Interfaces |
|
Parallel |
8 discrete outputs, TTL levels RS-232. |
|
Programming |
Via USB port. |
|
Antenna |
Built-in loop antenna, or SAM/BNC Jack for option |
|
Output drive level |
Max 100mA/each port / Hi for active |
|

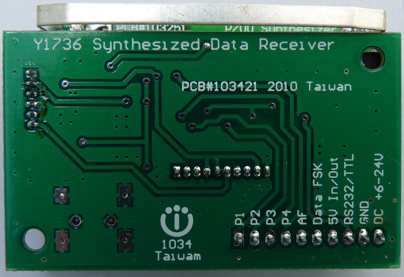

Pin and Connector
Designation
- J1-1 P1 for Driver 1
- J1-2 P2 for Driver 2
- J1-3 P3 for Driver 3
- J1-4 P4 for Driver 4
- J1-5 AF for Audio Output
- J1-6 Data FSK for POCSAG
Data Output
- J1-7 +5V In/Out for Power
5V In and Out
- J1-8 RS-232 TTL Output
- J1-9 GND
- J1-10 DC +6V-24V for DC
Power Input
¡@
¡@
How
to issue command:
Click here see
Command
list [V1.0] ¡@ |
Specifications subject to change without notice.
|
