Specification of PDR-Y1735
|
|
POCSAG Telemetry
|
PDR-Y1735 |
Multi-Function Radio Paging Data
Receiver Modules
Via
Paging Network Applications

6 digital driver output and TTL
Output
¡@

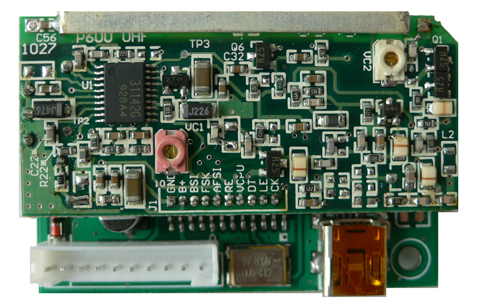

The Y1735L
is specially designed with the compact size and the high performance VHF
Band 130-174MHz/UHF 430-470MHz paging data receiver
module,
which is an ideal product for providing remote control or data messaging or one
way telemetry by utilizing either the
existed
POCSAG paging infrastructure or on-premises paging equipment. It provides 6 CMOS
driver outputs and the message
data out by
RS-232 TTL level.
¡@

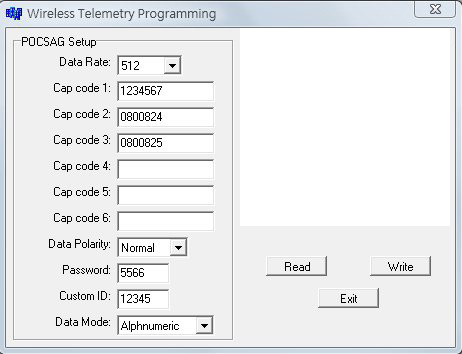

◄ Programming OS
¡@
|
Main Function
-
Wide
operation frequency range
-
POCSAG, baud: 512bps/1200bps/2400bps
-
TTL output (9600bps)
-
Built-in 6 CMOS On/Off
ports for relays' driving use
-
Programming by USB
-
Internal antenna
-
Option SMA antenna cable for
long
distance receiving
|
Application
-
POCSAG Data Receiver
-
Remote Controller
-
Car Burglar Alarm
-
Telemetry
-
Messaging devices
-
Advertisement Panel
-
wireless clock system
-
LED Message sign
|
General
|
|
Size: |
50mm X
36mm X 12mm
|
|
Power supply: |
6-24V DC. 50mA maximum current consumption. |
|
Weight |
12gm |
|
Operation Temperature |
-40˚C~85˚C |
|
RF Performance |
|
Frequency bands: |
136~174MHz,279~286MHz,420~490MHz,929~933MHz by crystals
Oscillator only. |
|
No-tune bandwidth: |
10Mhz VHF, 20MHz UHF. |
|
Frequency stability: |
+/- 2.5 ppm standard |
|
Channel spacing |
12.5kHz or 25kHz |
|
Demodulation |
FSK NRZ, POCSAG format 512, 1200 or 2400 Bps |
|
Selectivity |
55dB |
|
Inter modulation rejection |
60dB |
|
Sensitivity |
-106db/M (512bps),-105db/M (1200bps), -103db/M (2400bps) |
|
User Interfaces |
|
Parallel |
8 discrete outputs, TTL levels. |
|
Programming |
Via USB port. |
|
Antenna |
Built-in loop antenna, or SAM/BNC Jack for option |
|
Output drive level |
Max 100mA/each port / Hi for active |
|

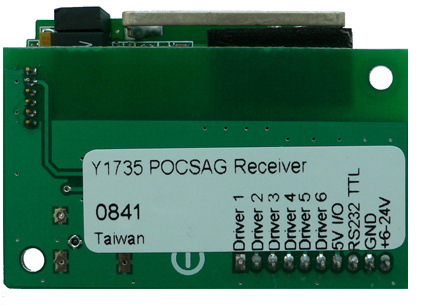

Pin and Connector
Designation
- J1-1 Driver 1
- J1-2 Driver 2
- J1-3 Driver 3
- J1-4 Driver 4
- J1-5 Driver 5
- J1-6 Driver 6
- J1-7 +5V I/O
- J1-8 RS-232 TTL output
- J1-9 GND
- J1-10 +6V-24V
¡@
¡@
How
to issue command:
Click here see
Command
list [V1.0] ¡@ |
Specifications subject to change without notice.
|
