Wireless Alarm Transmitter

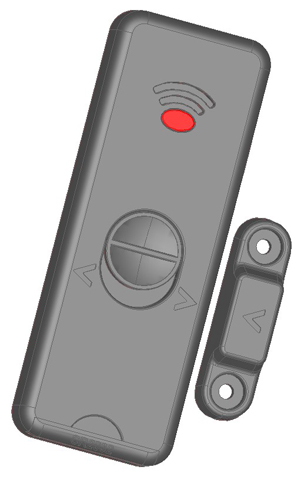

WD2 Door/Window Alarm

@

When Door or Window are Opened! Instantly sending a alarm to Pager & Smart Phone !

@

@

Main Function

  • Fast response
  • Direct to pagers
  • Easy installation
  • Easy operation
  • No wires
  • No power cord
  • Antenna inside
  • Long distance
  • Long battery life
  • Frequency synthesized
  • New EU frequency correspond
  • Place on the door or window
  • 2 Magnet switches inside

     Programming by



@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@



@

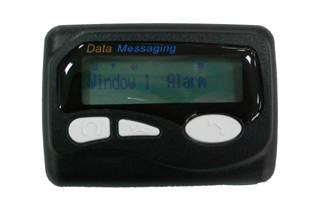

       Direct send to Pager or via IoT router to smart phones



@



The WD2 Door/window alarm  transmitter system is designed to directly page security persons with a reed switch either from the open to close or close to open.

@

There are no wire connections necessary. And the installation is easy and simple for all kinds of operations. If the door or window is opened, it will activate the call alarm and send a message out to the set paging receiver and the option selected smart phone

@

More various of the paging features which can be set easily by the PC programming.

It is easy to program and set up with the desired pager frequency, capcode, data rate, repeat time etc functions.

@

@

@

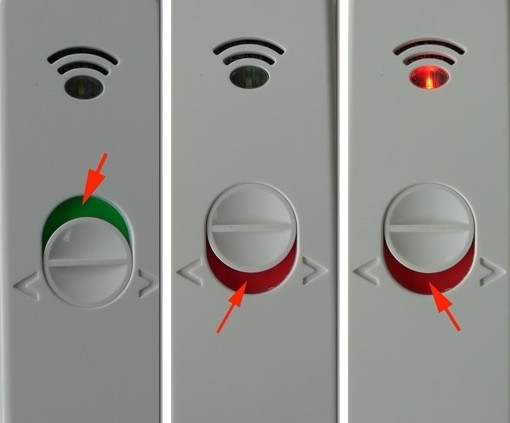

                                     Easy to understand system Status

                                     Guard Off                        Guard ON                    Alarm Transmitter



@

@

@

@

                                                      Specifications of WD2

Paging format:  POCSAG
Baud rate: 512bps / 1200bps / 2400bps.
Message: Numeric and Alphanumeric (Max 40 Characters).
Frequency: 303-490MHz,868-915MHz by Frequency Synthesized (PLL)
RF output 1-12mW mW Programable. EU standard.
Modulation: FSK ,NRZ.
Deviation: 4.5Khz.
Stability: 10 ppm.
Pager Capacity: 1 message for alarm active, and 1 message for battery low alert.
Operating Voltage: CR2032 battery x1 .(3V)
Programming: via micro USB with P/C.
Battery life about 1 year ( 10 Times per day).
Size: 100mm X 37mm X 10mm.
Housing Color:
White color (other desired colors in minimum 500PCs per order).
Model Weight:

30 g (with battery).

                                                                             Notes:  Specifications are subject to change without notice

@

@
