Net Paging

System

 NP-14

                   Multi-Link and 8 contacts alarm Paging Transmitter

Main Function

  • Compact size

  • Frequency synthesized

  • 400MHz 868MHz 900MHz

  • High RF power output

  • 8 contacts alarm input

  • RS-232 link

  • Ethernet Link

  • TCP/IP Link

  • Wifi Link

  • USB programming

  • Support many protocols

  • SCOPE, COMP2...

  • POCSAG format

  • RJ-45 interface

  • DB-9 interface

  • CE and FCC approved

¡@

Application

  • Nurse calling
  • Security
  • Hospitals
  • Hotels
  • Construction Sites
  • Emergency situations

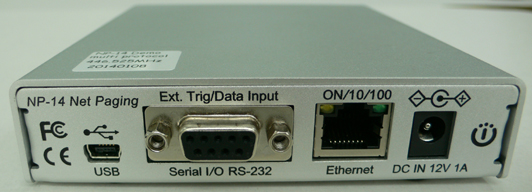

¡ôFor RS-232 and RJ-45 application,

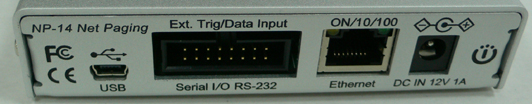

¡õFor 8 dry contact alarm and RJ-45 application

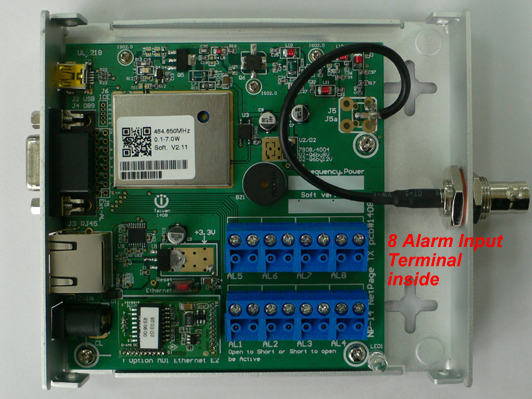

¡õView inside of NP-14

Obtaining your own paging system is a cost effective Brilliant solution for the various on-site communications needs.

The NP-14 is an Ethernet or RS-232 linking device to the computer for the wireless paging operations.

This is a well designed message encoded with the built-in synthesized transmitter. Simply just plug it

into any Ethernet, TCP/IP, WiFi, and RS-232 to link the system and install the OP software. Then, you can access the messages air paging right away.

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@



How to order of NP-14 series.

NP-14D for alarm trig input with 8 dry connector. (Inside terminal or/and External connector).

NP-14R for RS-232 interface with DB-9 series port.

NP-14E for Ethernet by RJ-45 Jack plus RS-232 with DB-9 series port.

NP-14T for TCP/IP address interface by RJ-45 Jack plus RS-232 with DB-9 series port.

NP-14Wifi for WiFi interface plus RS-232 interface with DB-9 series port.

NP-14T-Wifi for WiFi linking and TCP/IP Link by RJ-45 and plus RS-232 with DB-9 series port.



                                                                      Specifications

Frequency: 400-470 MHz Synthesized        860-933 MHz Synthesized
Paging format:  POCSAG.
Pager Baud rate: 512bps / 1200bps / 2400bps.
Message type : ASCII
Channel Spacing: 6.25K / 12.5K / 25K. Frequency Synthesized by USB programming
Modulation: NRZ NFSK, for POCSAG
Deviation: 3.5-4.5Khz
Stability: ¡Ó10ppm.
RF output power: 0.1~7 W (programmable) 0.1~1 W (programmable) 1-5W(option)
RF output connector: BNC female (SMA female option)
P/C Interface: USB 2.0 and RS-232 9600bps
Ethernet: RJ-45 TCP/IP 10/100M/1000M
Operation temperature: -25¢XC ~ 70¢XC
Power Supply: DC 12V 1-2A (See RF power output)
Size: 120 mm X 110 mm X 25 mm.
Model Weight:

 280 g.

¡@
