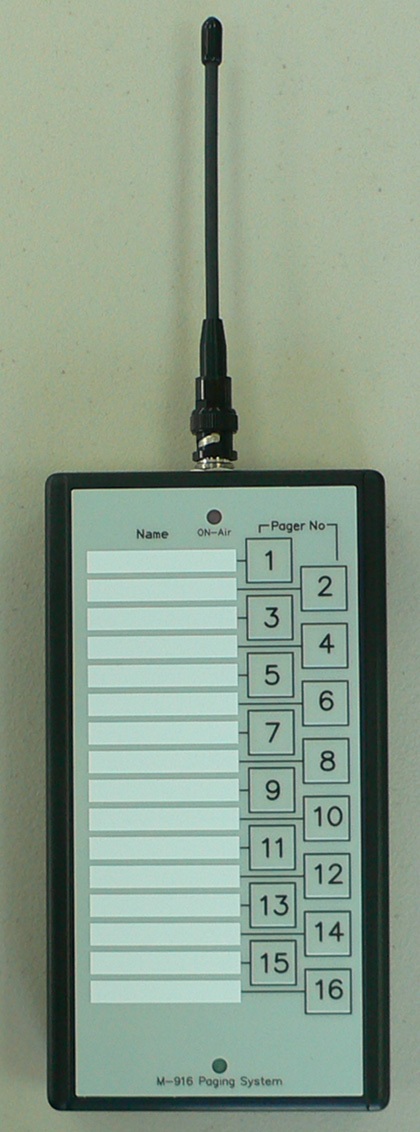

16 Buttons Paging System |
M-916K |
|
Easy for calls by Pressing the Desired Button |
||
¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ |
The M-909K on-site paging system is designed to directly page the waiters, nurse, and staffs with a simple button
depressing. The system's individual call button feature can transmit messages to a single or group pager users.
While the paging is activated, the red LED located at the top of the button will be lighted on to confirm the
messages transmission is on the way.
Specifications of Encoder/Transmitter
| Frequency: | 130-175MHz / 410-490MHz. |
| Frequency Oscillator type: | Crystal controller |
| Paging format: | POCSAG |
| Baud rate: | 512bps / 1200bps / 2400bps. |
| Message: | Numeric and Alphanumeric (Max 40 Character) |
| RF output power: | 0.1W - 5W Adjustable |
| RF output Jack:: | BNC Female |
| Modulation: | FSK , |
| Deviation: | 4.5Khz |
| Stability: | ¡Ó10 ppm |
| Pager Capacity: | 16 Buttons. |
| Operating Voltage: | DC12V 1A with a AC100~240V 50/60Hz Switching Power Adapter |

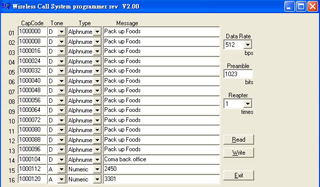

| Programming: | via USB with P/C |
| Power Consumption: | Standby 12mA, On Air 750mA (at 5 watts) |
| Size: | 189mm X 102mm X 42mm. |
| Weight: |
260gm without AC adapter |
|
Notes: Specifications are subject to change without notice |
