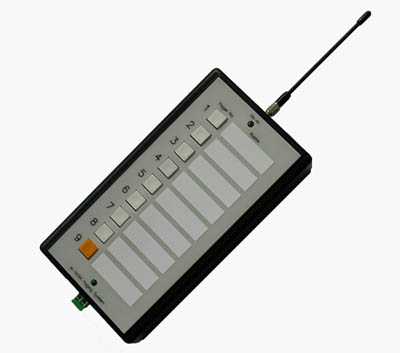

9 Buttons Paging System

M-909K

                   Easy for calls by Pressing the Desired Button

Application

  • Restaurants
  • Bar
  • Club
  • Casino
  • Hospitals
  • Nurse station
  • Hotels
  • Emergency situations
  • Manufacturing
  • Convention centers

       Main Function

  • POCSAG Formats
  • One button to paging
  • Group Call
  • Dry-Contact input to paging (option*1)
  • Long distance
  • Easy to install
  • Programming by PC

      Pre-Programming By









@

@

@

@

@

@

@

@

@

@

@

@

@

@

@



@

@

@

@

The M-909K on-site paging system is designed to directly page the waiters, nurse, and staffs with a simple button depressing. The system's individual call button feature can transmit messages to a single or group pager users. While the paging is activated, the red LED located at the top of the button will be lighted on to confirm the messages transmission is on the way. Also you can order the option extension dry input port to connect with your own security system ,Nurse Call system or Fire sensor system etc.

                                            Specifications of Encoder/Transmitter

Model Number: M-909L M-909H
Frequency: 410-490MHz.868MHz.915MHz
Frequency Oscillator type: 1 Channel Crystals controller or Frequency Synthesized.
Paging format:  POCSAG
Baud rate: 512bps / 1200bps / 2400bps.
Message: Numeric and Alphanumeric (Max 40 Character)
RF output power: 410-490MHz 0.1W to1W

868MHz-915MHz 0.1W to 0.5W

410-490MHz 0.1W to 7W

868-915MHz 0.1W to 4W

RF output Jack:: 410-490MHz BNC Female                  868MHz/915MHz SMA Female
Modulation: NRZ FSK
Deviation: 4.5Khz
Stability: 10 ppm 10 ppm
Pager Capacity: 9 Buttons.
Operating Voltage: DC12V 1A with a  AC100~240V 50/60Hz Switching Power Adapter DC12V 2A with a  AC100~240V 50/60Hz Switching Power Adapter
Programming: via USB with P/C
Power Consumption: Standby 12mA On Air  350mA Standby 12mA On Air 0.8A-1.5A
Size: 189mm X 102mm X 42mm.
Weight:

240gm without AC adapter

300gm without AC adapter
                                                                             Notes:  Specifications are subject to change without notice
