On-site Paging

System

 M-909X M-916X

                                  Easy for calls by Pressing the Desired Button

        Main Function

  • POCSAG Formats
  • One button to paging
  • Group Call
  • Long distance
  • Easy to install
  • Programming by PC
  • Frequency Synthesized 410-490MHz 868-915MHz

Application

  • Restaurants
  • Bar
  • Club
  • Casino
  • Hospitals
  • Nurse station
  • Hotels
  • Emergency situations
  • Manufacturing
  • Convention centers

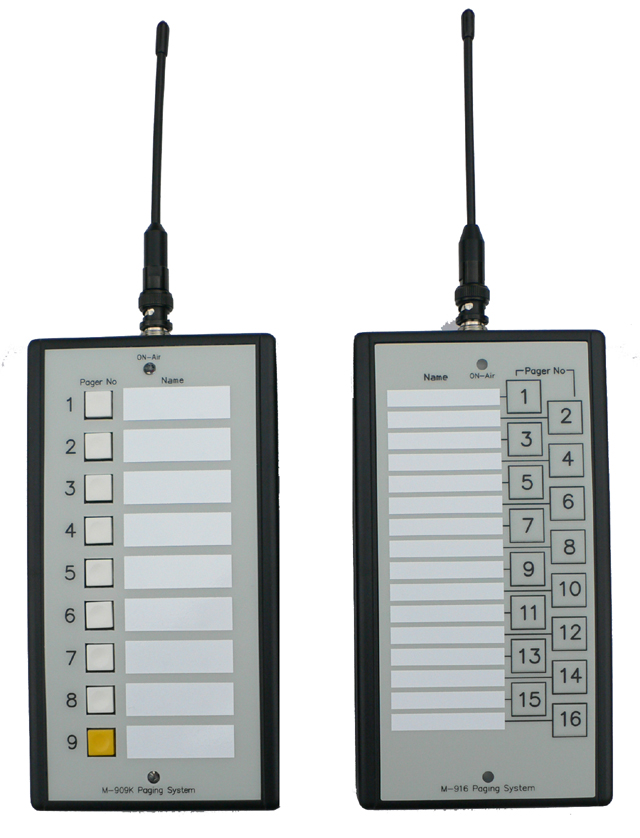

The M-909X,M-916X on-site paging system is designed to directly page the waiters, nurse, and staffs with a simple button depressing. The system's individual call button feature can transmit  messages to a single or group pager users.

While the paging is activated, the red LED located at the top of the button will be lighted on to confirm the messages transmission is on the way.

¡@

¡@

¡@

¡@

¡@

¡@

                                                                         Specifications

Item No

M-909X

M-916X
Key Button 9 Key or 8 key+1group call 16 key button
Frequency: 410-490 MHz Synthesized        868-915 MHz Synthesized
Paging format:  POCSAG.
Pager Baud rate: 512bps / 1200bps / 2400bps.
Message type : ASCII
Channel Spacing: 6.25K / 12.5K / 25K. Frequency Synthesized by USB programming
Modulation: NRZ NFSK, for POCSAG
Deviation: 3.5-4.5Khz
Stability: ¡Ó10ppm.
RF output power: 0.1~7 W (programmable) 0.1~1.5 W (programmable)
RF output connector: BNC female (SMA female option)
P/C Interface: USB
Operation temperature: -25¢XC ~ 70¢XC
Power Supply: DC 12V 1-2A (See RF power outpot)
Size: 189mm X 102mm X 42mm.
Model Weight:

 280 gs.

¡@
