Specification of TX-115L



UHF

Transmitter with POCSAG encode

TX-115L synthesized

High Power applications operating in the 315/433/868/915 MHz

Compact Data Transmitter Module for

Wireless alarm and security system,

Industrial monitoring and control system

Programmable data rate from 0.5 to 6Kbps

Programmable Frequency from 300-350MHz,350-470MHz,779-930MHz

RF output up to 4 Watts (300-470MHz only)

2-FSK,4-FSK,GFSK and OOK supported

POCSAG Encoder inside (option)

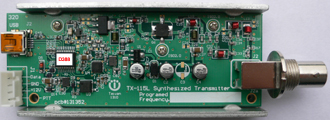

.↑ Option A. BNC Jack on board

↑Option B. SMA Jack on board

Also you can option any type cable with RF Jack.

   Datasheet



For Wireless Application

The new design TX-115L is a cost effective and high performance sub-1 GHz RF transmitter,

Which is integrated with a high configurable baseband modulator.

The device support various modulation formats and has a configurable data rates from 0.5 to 600 kbps.

Option inside of POCSAG Copcode with message

The new TX-115L, which is the high reliability and low cost, high power output transmitter in ISM band, is an ideal design module used for paging system, wireless data messaging, and wireless telemetry applications etc.

    Main Function

  • ISM Band 315/433/868/915MHz
  • Narrow band FM or FSK Modulation
  • 2-level FSK,4-level,GFSK, OOK supported
  • POCSAG 512/1200/2400 Encoder inside (option)
  • High RF output up to 5W
  • Data rate up to 6Kbps.
  • PLL synthesized frequency controller
  • Operation temperature from -30 -- +70
  • Small Size: 95mm X 35mm X 17mm
  • BNC or SMA antenna jack on board
  • Also option BNC or SMA coaxial cable for RF output
