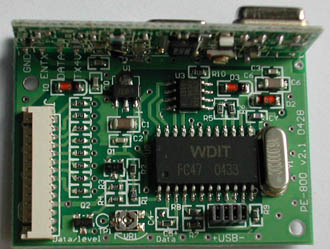

Specification of PE-800SKD


POCSAG Transmitter Module



8 Call Inputs    -   Part No: PE-800SKD-S

16 Call Inputs - Part No: PE-800SKD-H





Paging system

Waiter paging service application

Car alarm system

Remote controller

POCSAG Encoder with Transmitter

SKD (Semi-Kit Device)

The well-designed miniature Model PE-800SKD, which has the 8/16 call inputs POCSAG Encoder with 4mW built-in FSK Transmitter, is an USB microprocessor control products mainly used for message encoding into the digital POCSAG paging format. And the 8 or 16 inputs PE-800SKD allows the device to generate 8 or 16 different addresses and numeric or
alphanumeric messages for the air paging application usages.

    Main Function

  • USB port pre-programmable
  • POCSAG,CCIR#1 (NRZ) standard format
  • Data rate 512/1200/2400bps programmable
  • Numeric or alphanumeric message
  • Built-in 4mW transmitter
  • Easy assembly and connection
  • Low power consumption
  • Wide voltage operation from DC 6-20V
  • Small Size: 46mm X 34mm X 14mm


   I/O Connector

  • 1. key 1 In (S type), Key pad X1 (H type)

  • 2. key 2 In (S type), Key pad X2 (H type)

  • 3. key 3 In (S type), Key pad X3 (H type)

  • 4. key 4 In (S type), Key pad X4 (H type)

  • 5. key 5 In (S type), Key pad Y1 (H type)

  • 6. key 6 In (S type), Key pad Y2 (H type)

  • 7. key 7 In (S type), Key pad Y3 (H type)

  • 8. key 8 In (S type), Key pad Y4 (H type)

  • 9. GND

  • 10. V+ 6-20V

  • 11. +PTT (High to Action)

  • 12. -PTT (Low to Action)

  • 13. NC

  • 14. Test Point (Data)




Part No: PE-800SKD-S/H

Data Format


Data Rate


RF output

4 mW (6db/M)

Memory Slot

8 or 16

Message Type

Numeric or Alphanumeric

Repeat Call

1-4 times



2-2400 bits

Power source

DC 6-20 V

PCB Size

46mm X 34mm X 14mm.

Power consumption

Standby 15uA TX 45mA


14 grams.

                                                                                                   Specifications subject to change without notice.
